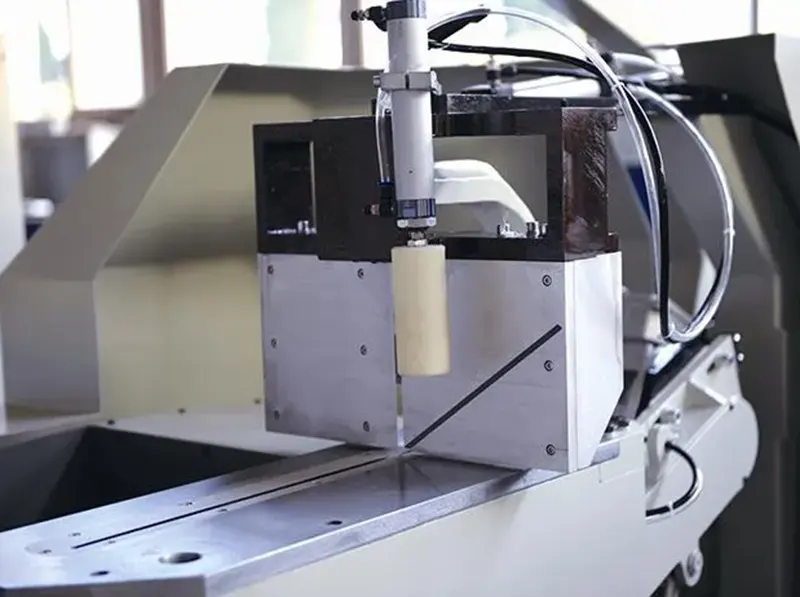

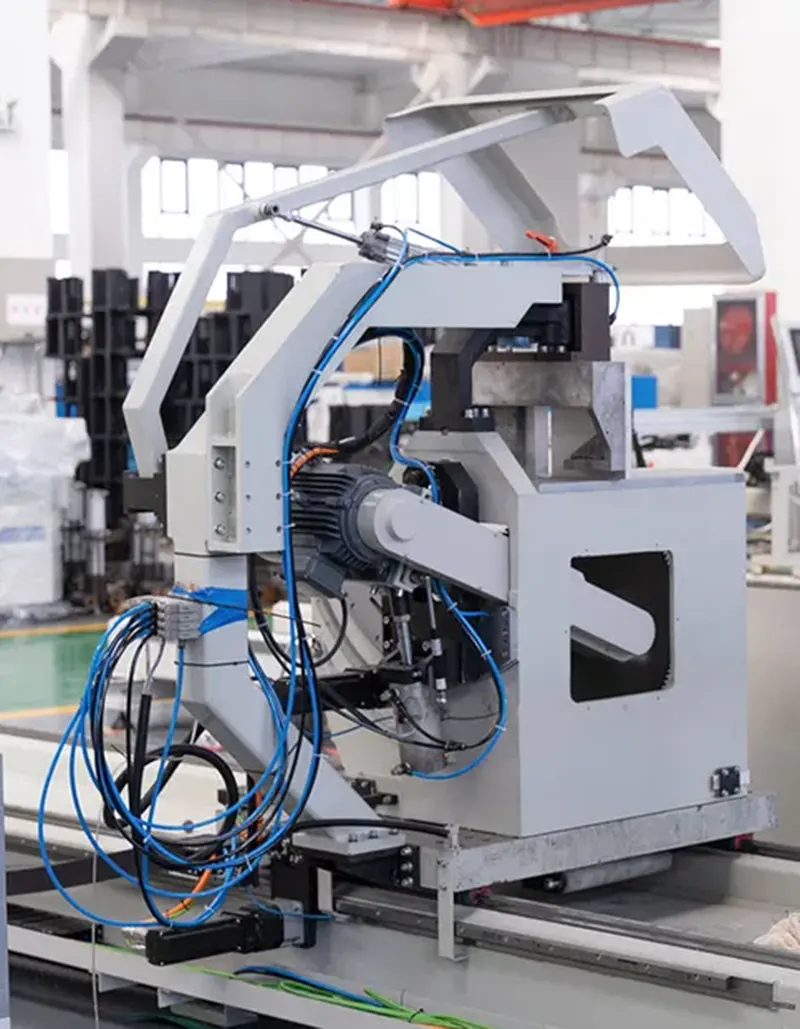

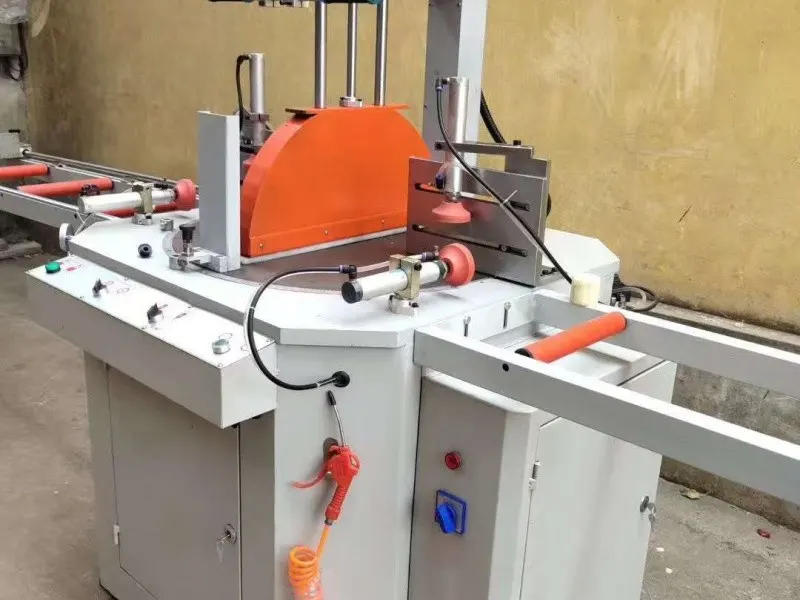

5-Axis CNC Compound Mitre Saw 22.5°–135° Aluminum Cabinet Frame features & Benefits:

1. 5-Axis CNC Intelligent Control System

· Equipped with industrial CNC controller and brushless servo motors for all 5 axes, ensuring smooth, precise, and repeatable movements.

· 15-inch touchscreen with user-friendly interface: Program angles, lengths, and cutting modes in minutes; supports USB/LAN data transfer.

· Built-in auto-compensation for length and angle errors, eliminating manual adjustments and reducing material waste.

2. Unmatched Angle Versatility (22.5°–135°)

· Horizontal rotation: 22.5° (outward) to 135° (inward) for unlimited miter angle combinations.

· Vertical tilt: 45°–90° for bevel cuts, enabling complex 2D compound angle cutting in one pass.

· Perfect for aluminum cabinet frame corners, door frame miters, and custom architectural profiles.

3. Dual-Head High-Efficiency Cutting

· Two independent cutting heads (fixed left, motorized right) with synchronous or individual operation.

· Max cutting length: 6000mm; handles large aluminum profiles for cabinet frames and curtain walls.

· Up-stroke cutting cycle with radial feed: Combines pivoting and linear movements for maximum cutting capacity.

 5-Axis CNC Compound Mitre Saw 22.5°–135°Aluminum Cabinet Frame

 5-Axis CNC Compound Mitre Saw 22.5°–135°Aluminum Cabinet FrameOptional Accessories:

· Label printer for profile tracking.

· High-efficiency dust collector.

· Extended material support rack (up to 8000mm).

· Automatic feeding system for mass production.

 5-Axis CNC Compound Mitre Saw 22.5°–135°Aluminum Cabinet Frame Technical parameters

☆ Power supply voltage: 380V±10% 50Hz±2% three-phase four-wire system
☆ sawing motor power: 3kW 2800rpm
☆ Working pressure: 0.6~0.8MPa
☆ Saw blade specifications: Φ600 × Φ38 × 4.8 × 4.2 × 144P
☆ Saw blade angle: 45°~90° arbitrary angle
☆ Table rotation angle: 45 ° ~ 135 ° arbitrary angle
☆ Cutting Section range: 200mm × 200mm (cutting angle at 90°, width × height, see the cutting section range)
☆ Cutting length: 700mm~5000mm (90°)
☆ Blade feed rate: 0~3m/min
☆ Cutting surface roughness: ≤ Ra12.5μm

FAQ

Q: IsLBL a manufacturer or trading company?
A: We are the manufacturer and seller at the same time. LBL brand is one PROFESSIONAL window machine company in China.

Q:LBL is main products?
A: Aluminum window machines: CNC cutting center, double miter saw, end milling machine, CNC milling machine, aluminum punching machine, end milling machine, copy router and corner connector saw, etc; Wood window machines: wood saw, wood window frame machine, vertical & horizontal drilling machine, dovtail making machine, wood planner, and tenon making machine, etc.
