Full Auto Double Head Aluminum Mitre Saw Features & Advantages

· Applicable for cutting profile of aluminum windows and doors and curtain walls

· Imported cutting motor connects with saw blade; the saw blade feed adopts gas-liquid damping cylinder drive, with smooth cutting

· Equipped with cooling devices, high precision cutting saw rotates stably and cutting surface smooth.

· The movable cutting head is driven by imported servo driver, adopts gear rack transmission, full close loop control, with high precision positioning.

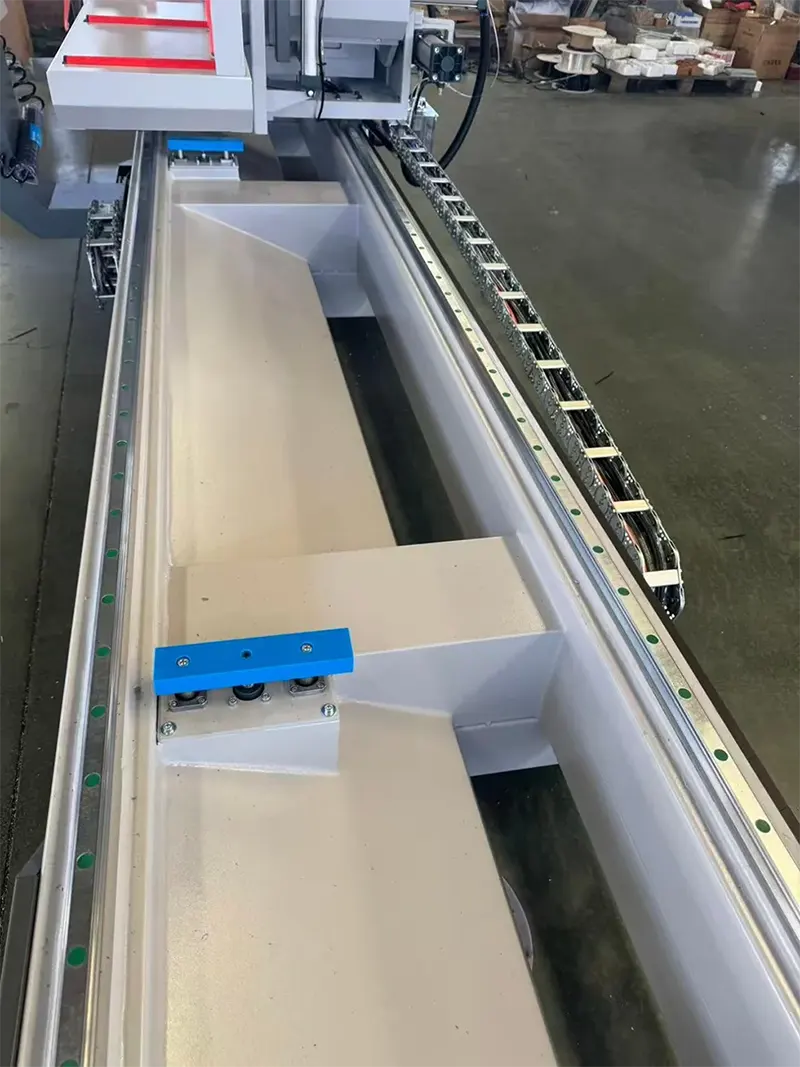

· The movable cutting head adopts high precision linear guide rail pair, operating stable and reliable.

·  The follow-up supporter is space saving

Full Auto Double Head Aluminum Mitre Saw Technical Parameters

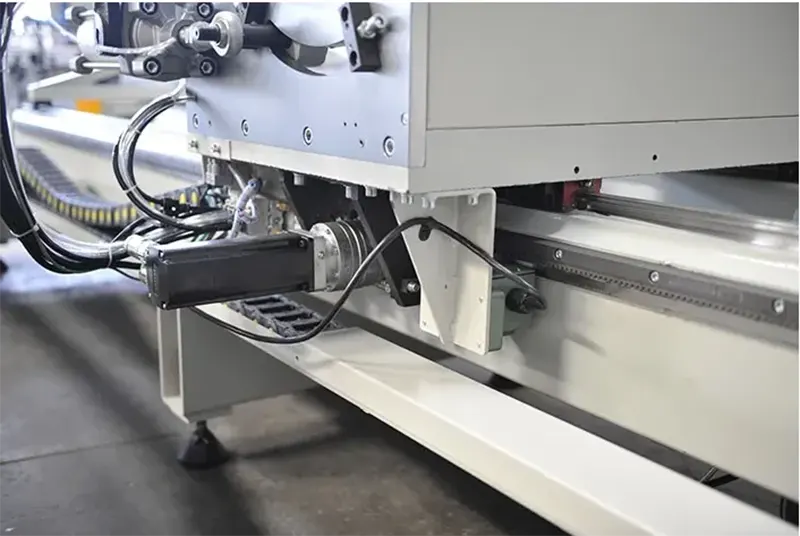

✅ Right head feeding driven by imported servo device, gear and rack transmission, full close-loop control, with high accuracy

·  3-axis servo control: ±0.1mm length repeatability, ±5′ angle accuracy; auto-positioning of the moving head (40m/min speed).

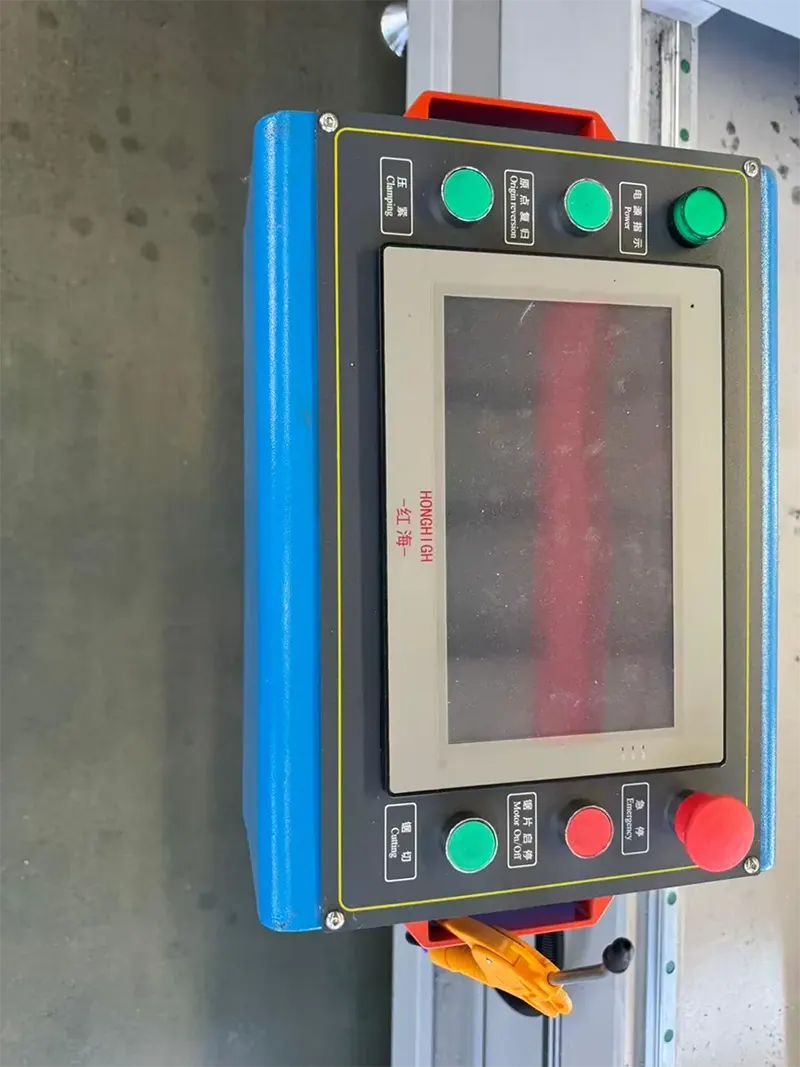

·  PLC touchscreen: One-click angle switching (22.5°/45°/67.5°/90°); saves 100+ cutting programs for batch production.

·  Linear guide + rack-pinion drive: Imported components ensure smooth, backlash-free movement and long-term stability.

· Dual-head simultaneous cutting: Processes 2 profiles at once; 4× faster than single-head saws.

· Auto clamping (2-way pneumatic): Horizontal + vertical clamps fix profiles firmly; no slippage, zero scrap.

· Low energy use: 5.5–6kW total power; 200L/min air consumption (0.5–0.8MPa).

✅ Industrial-Grade Safety & Durability (Top Keyword: Safe Aluminum Cutting Machine)

· CE/ISO/SGS certified: Full EU machinery compliance; emergency stop, safety covers, two-hand operation.

· Thick steel frame: Heavy-duty cast base reduces vibration; 1450–1850kg weight ensures stability.

· 12-month warranty: Free replacement of core parts; 24/7 multilingual technical support.

FAQ

Q: How do I install and run the machine?
A:Our technician installed the machine before shipping. For some small part installation, we will send a detailed training video and user's manual along with the machine. 95% of customers can learn by themselves.

Q: What can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try to fix the machine by yourself or someone else. We will respond within 24 hours, as quickly as we can, to solve it for you.

Q: What customized services have you provided?
A:LBL CNC, we are the true manufacturer; we have our own factory, therefore we could supply full OEM and ODM services.

Q: AreLBL CNC machines user-friendly?
A:Yes, our machines are designed with user-friendliness in mind. They come with intuitive software interfaces that are easy to learn and operate. We also provide comprehensive training and technical support to ensure our customers can make the most out of their machines

Q:What after-sales support doesLBL CNC provide?
A:We understand the importance of reliable after-sales support. We provide comprehensive technical support, including remote assistance, video tutorials, and access to our knowledgeable support team.
